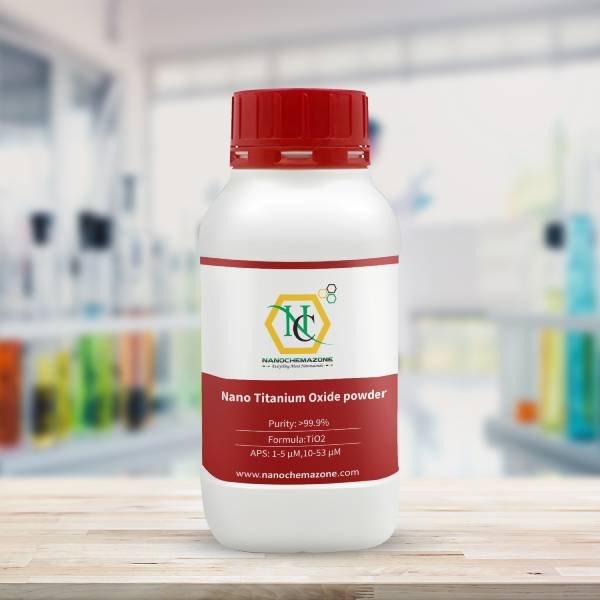

Nano Titanium Oxide Powder
$0.00
Nano Titanium Oxide Powder
| Product | Nano Titanium Oxide Powder |
| CAS No. | 1317-80-2 |
| Appearance | White  Powder |
| Purity  | ≥99%,  ≥99.9%,  ≥95%
(Other purities are also available) |
| APS   | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | TiO2 |
| Density | 4.2g/cm3 |
| Molecular Weight | 79.87g/mol |
| Product Codes | NCZ-MNO-101/25 |
Nano Titanium Oxide Description:
Nano Titanium Oxide Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing
Nano Titanium Powder Related Information :
Storage Conditions:Â
Airtight sealed, avoid light and keep dry at room temperature.
Please contact us for customization and price inquiry
Email: contact@nanochemazone.com
Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters.
Nano Titanium Oxide (TiO2) Powder (CAS No. 1317-80-2), rutile
| Catalog No. | NCZ-MNO-101/25 |
| CAS Number | 1317-80-2 |
| Chemical Formula | TiO2 |
| APS | 15-100nm |
| Form | White Powder |
| Purity | 99.9% |
Nano Titanium Oxide (TiO2) Powder (CAS: 1317-80-2) (ructile) refers to titanium dioxide (TiO2) particles that have been reduced to a size on the nanoscale, typically ranging from 1 to 100 nanometers. It offers high-quality Nano Titanium Oxide (TiO2) Powder with competitive pricing.
Nano Titanium Oxide (TiO2) Powder (Ructile) Description
Nano Titanium Oxide (TiO2) Powder refers to titanium dioxide (TiO2) particles that have been reduced to a size on the nanoscale, typically ranging from 1 to 100 nanometers. This powder possesses unique properties due to its small particle size, including high surface area, increased reactivity, and improved photocatalytic activity. Nano Titanium Oxide (TiO2) Powder finds various applications in fields such as cosmetics, sunscreens, electronics, environmental remediation, and the production of self-cleaning and antimicrobial surfaces.
Nano Titanium Oxide (TiO2) Powder (Ructile) Specification
| Model | Purity
(%) |
Particle Size
(nm) |
Specific Surface Area
(m²/g) |
Features and Applications |
| ZT-T01 | 99.99 | 30-80 | 1-10 | Rutile Crystal Growth, Electronic Materials |
| ZT-T15 | 99.8 | 15-20 | 50-100 | Rutile, Electronic, Battery, New Energy, Military, Target Materials, Ceramics |
| ZT-T25 | 99.8 | 30-50 | 20-50 | Rutile |
| ZT-T50 | 99.8 | 50-60 | 20-50 | Rutile |
| ZT-T100 | 99.8 | 80-100 | 15-25 | Rutile |
| ZT-T200S | 85-95 | 200 | 5-15 | Oleophilic, Good Hiding Power, Used in Paints, Inks, Plastics |
| ZT-T200H | 85-95 | 200 | 5-15 | Hydrophilic, Used in Paints, Rubber |
| ZT-T25F | 88-90 | 25-50 | 60-100 | Hydrophilic, Textile Sizing, PVA Substitute, Wear-resistant |
| ZT-T25S | 85-95 | 30-50 | 20-40 | Oleophilic, Used in Inks, Plastics, Rubber |
Nano Titanium Oxide (TiO2) Powder (Ructile) Applications
- Sunscreen: Due to its ability to absorb ultraviolet (UV) radiation, Nano Titanium Oxide (TiO2) Powder is used in sunscreens to protect the skin from harmful UV rays.
- Photocatalysis: Nano Titanium Oxide (TiO2) Powder acts as a catalyst when exposed to light, enabling photodegradation of organic pollutants in air and wastewater treatment processes.
- Antibacterial coatings: The antimicrobial properties of Nano Titanium Oxide (TiO2) Powder make it a suitable candidate for coatings on surfaces to inhibit bacterial growth in hospitals, public spaces, or household products.
- Environmental remediation: Nano Titanium Oxide (TiO2) Powder is used for the removal or degradation of pollutants in water and soil, such as heavy metals, organic compounds, and dyes.
- Energy applications: It is utilized in dye-sensitized solar cells to improve the efficiency of solar energy conversion and as a photocatalyst for hydrogen production through water splitting.
- Self-cleaning surfaces: Nano titanium oxide coatings are applied on surfaces to create a self-cleaning effect by breaking down organic contaminants when exposed to light.
Nano Titanium Oxide (TiO2) Powder (Ructile) Packaging
Our Nano Titanium Oxide (TiO2) Powder is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
Description
Note: For pricing & ordering information, please get in touch with us at sales@nanochemazone.com
Please contact us for quotes on Larger Quantities and customization. E-mail: contact@nanochemazone.com
Customization:
If you are planning to order large quantities for your industrial and academic needs, please note that customization of parameters (such as size, length, purity, functionalities, etc.) is available upon request.
NOTE:
Images, pictures, colors, particle sizes, purity, packing, descriptions, and specifications for the real and actual goods may differ. These are only used on the website for the purposes of reference, advertising, and portrayal. Please contact us via email at sales@nanochemazone.com or by phone at (+1 780 612 4177) if you have any questions.
Only logged in customers who have purchased this product may leave a review.
Related products
Acid Resist Brick Powder
Acid Resist Brick Powder
| Product | Acid Resist Brick Powder |
| CAS No. | N/A |
| Appearance | White Powder |
| Purity  | ≥99%,  ≥99.9%,  ≥95%
(Other purities are also available) |
| APS   | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SiO2,Al2O3 |
| Density | 2.20g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-116/25 |
Acid Resist Brick Description:
Acid Resist Brick Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing
Acid Resist Brick Powder Related Information :
Storage Conditions:Â
Airtight sealed, avoid light and keep dry at room temperature.
Please contact us for customization and price inquiry
Email: contact@nanochemazone.com
Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters.
Acid Resist Brick
| Catalog No. | NCZ-MNO-116/25 |
| Color | White |
| Density | ≥2g/cm3 |
It has extensive experience in manufacturing and supplying refractory brick of the highest, most durable quality at competitive prices. We are also able to customize this product for various specifications.
Description & Application of Acid Resist Brick
The main component of the acid-resistant brick is silica, which forms a large amount of mullite under high-temperature roasting and is a substance with high acid resistance. Since the acid-resistant brick has a compact structure and a small water absorption rate, it can also be used at normal temperatures. It is resistant to any concentration of the alkaline medium, but it is not resistant to high temperatures. The acid-resistant brick contains more than 70% of silica and is sintered. It is widely used in the chemical industry for acid-groove, acid well, and acid storage.
Specifications of Acid Resist Brick
| Type | AR-35 | AR-38 |
| Max Service Temperature | ≥ 1200 °C | ≥ 1250 °C |
| Al2O3 | 35 % | 38 % |
| SiO2 | 62 % | 59 % |
| Bulk Density | ≥ 2.20 g/cm3 | ≥ 2.20 g/cm3 |
| Apparent Porosity | ≤ 14% | ≤ 16% |
| Cold Compressive Strength | ≥ 600kg/cm2 | ≥ 500kg/cm2 |
| Refractoriness under Load | 1325 °C | 1350 °C |
| Acid resistance (Loss in weight) | ≤ 2.5% | ≤ 2.5% |
Applications of Acid Resist Brick
The aluminum-silicon acid resists brick is usually used in the acid ditch, acid well, acid storage and impacted the ground with large acid loading. These facilities are frequently used in the industry of petroleum, chemistry, and pharmacy.
Packaging of Acid Resist Brick
Our acid resist bricks are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Agate Bead Powder
Agate Bead Powder
| Product | Agate Bead Powder |
| CAS No. | N/A |
| Appearance | Light Powder |
| Purity  | ≥99%,  ≥99.9%,  ≥95%
(Other purities are also available) |
| APS   | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SiO2 |
| Density | 2.60-2.64g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-128/25 |
Agate Bead Description:
Agate Bead Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing
Agate Bead Powder Related Information :
Storage Conditions:Â
Airtight sealed, avoid light and keep dry at room temperature.
Please contact us for customization and price inquiry
Email: contact@nanochemazone.com
Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters.
Agate Bead
| Catalog No. | SM6075 |
| Main Composition | SiO2/MgO/CaO/Mn2O3 |
| Size | Dia 3-35mm |
| Form | Bead |
| Minimum Order Quantity (MOQ) | 25kg/drum |
Agate Beads are crafted from pure, natural imported agate stone through processes including cutting, grinding, and polishing. Stanford Advanced Materials (SAM) proudly offers Agate Beads as a robust solution for your milling needs, ensuring quality and consistency in every application.
Agate Bead Description
Agate Beads are crafted from pure, natural imported agate stone through processes including cutting, grinding, and polishing. They come in three shapes: spherical, cylindrical, and square. These balls are characterized by their dense structure, transparent coloration, high elastic modulus, and excellent wear resistance. This product is ideal for pure and efficient dispersion and grinding of various light-colored materials in vertical stirred mills and horizontal rolling ball mills.
Agate Bead Specification
| Specific Gravity | 2.650kg/dm3 |
| Bulk Density | 1.58kg/L |
| Mohs Hardness | 7 |
| Elastic Modulus | >70Gpa |
| Minimum Order Quantity (MOQ) | 25kg/drum |
Chemical Composition
| Composition | SiO2 | MgO/CaO/Mn2O3 |
| Wt% | 94 | 6 |
Specification
Ball
| Model | Diameter (φ) mm |
| NG3 | 3-5 |
| NG5 | 5-7 |
| NG7 | 7-10 |
| NG10 | 10-14 |
| NG14 | 14-18 |
| NG16 | 16-20 |
| NG20 | 20-25 |
| NG25 | 25-30 |
| NG30 | 30-35 |
Cube
| Model | Size (φ) mm |
| NGS8 | 8*8*8 (±1.0) |
| NGS15 | 15*15*15 (±2.0) |
| NGS20 | 20*20*20 (±3.0) |
*The size can be customized according to customer requirements.
Agate Bead Applications
This product is ideal for pure and efficient dispersion and grinding of various light-colored materials in vertical stirred mills and horizontal rolling ball mills.
Agate Bead Packing
25kg/drum, Packaged in composite woven bags or drums.

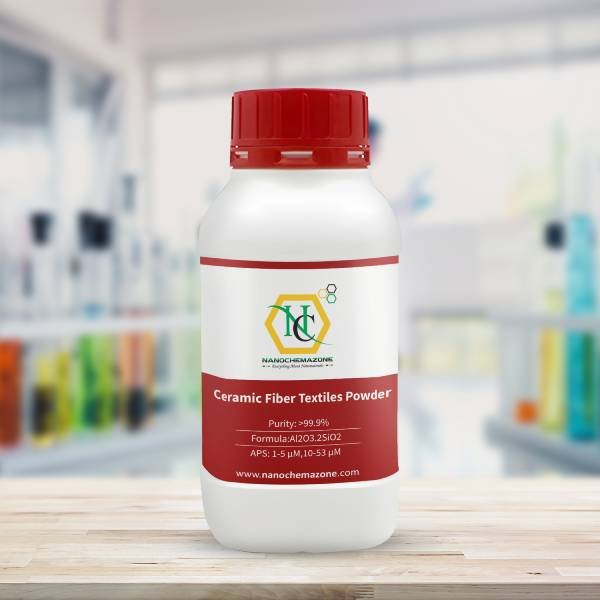

Ceramic Fiber Textiles Powder
