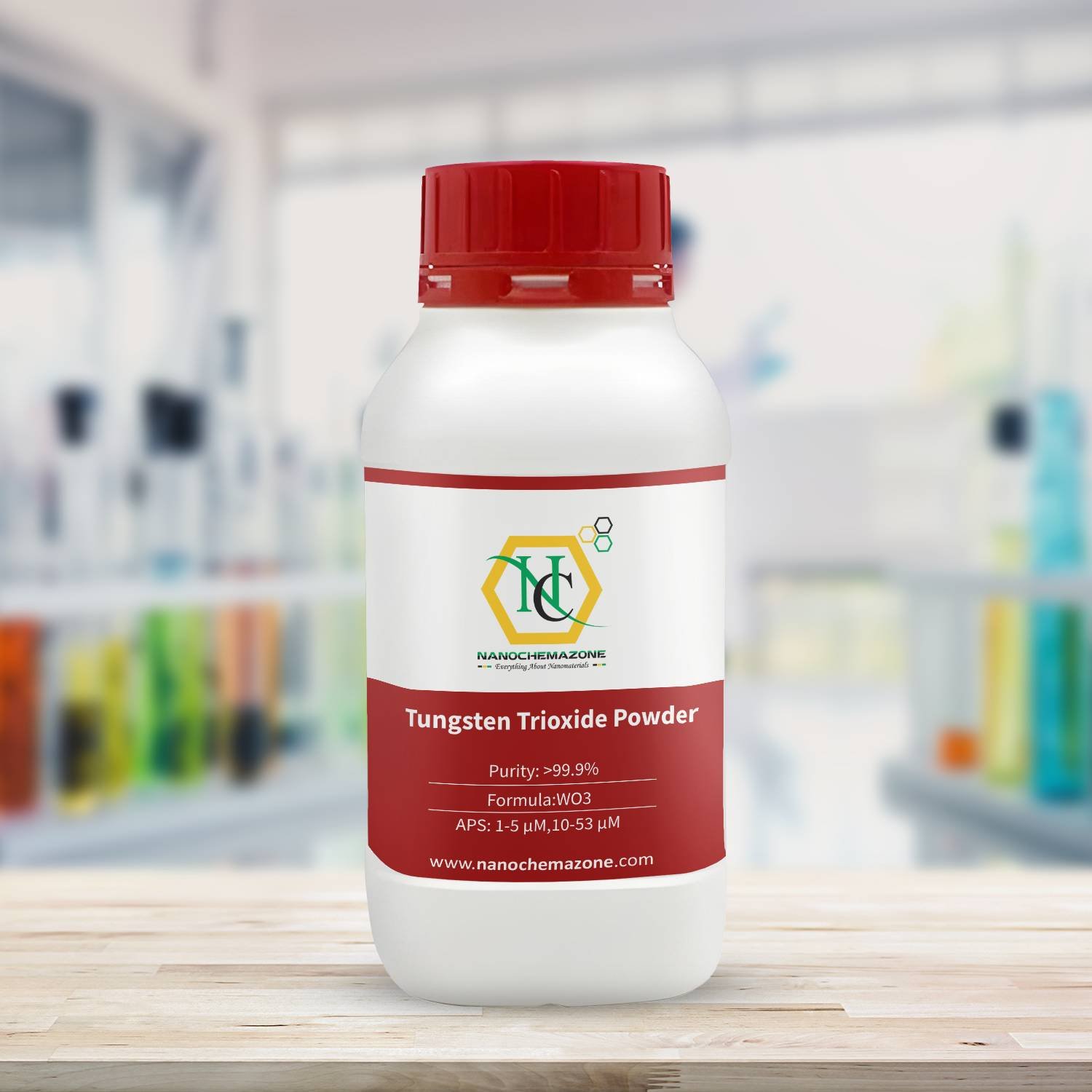

Tungsten Trioxide Powder
$0.00
Tungsten Trioxide Powder
| Product | Tungsten Trioxide Powder |
| CAS No. | N/A |
| Appearance | Light Yellow Powder |
| Purity  | ≥99%, ≥99.9%, ≥95%
(Other purities are also available) |
| APS   | 1-5 µM, 10-53 µM (Can be customized), Ask for other available size range. |
| Ingredient | WO3 |
| Density | N/A |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-125/25 |
Tungsten Trioxide Description:
Tungsten Trioxide Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing
Tungsten Trioxide Powder Related Information :
Storage Conditions:
Airtight sealed, avoid light and keep dry at room temperature.
Please contact us for customization and price inquiry
Email: contact@nanochemazone.com
Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters.
Tungsten Trioxide (WO3) Powder – Normal
| Catalog No. | NCZ-MNO-125/25 |
| Size | 8-25μm |
| Material | WO3 |
| Purity | WO3≥99.95% |
| Appearance | Light yellow powder |
| MSDS/SDS | Download MSDS/SDS |
Tungsten Trioxide (WO3) Powder Description:
Tungsten trioxide, also called tungsten (VI) oxide or tungstic anhydride, is a thermally stable and water-insoluble tungsten compound. Tungsten Trioxide is generally immediately available in most volumes. Ultra-high purity, high purity, submicron and nano powder forms may be considered.
Application of Tungsten (VI) Oxide Powder:
-Tungsten trioxide is widely used to manufacture tungstate for x-ray screen phosphors, fireproofing fabrics, and gas sensors.
-Tungsten (VI) oxide has specialized use in the production of electrochromic windows.
-WO3 is also used as a pigment in ceramics and paints due to its yellow color.
Specification of Normal Tungsten Trioxide Powder:
Apparent Density: 1.5g/cm3 ~ 3.0 g/cm3
Particle Size: 8 µm ~ 25 µm
| Main Content (%) WO3 ≥ 99.97% Ignition Loss: ≤ 0.3% | ||||||
| Other Contents (%) ≤ | Al | 0.0008 | As | 0.001 | Bi | 0.0001 |
| Ca | 0.001 | Cd | 0.0001 | Co | 0.0005 | |
| Cr | 0.0005 | Cu | 0.0003 | Fe | 0.001 | |
| K | 0.001 | Mg | 0.0005 | Mn | 0.0005 | |
| Mo | 0.002 | Na | 0.001 | Ni | 0.0005 | |
| P | 0.0007 | Pb | 0.0001 | S | 0.0007 | |
| Sb | 0.0001 | Si | 0.001 | Sn | 0.0002 | |
| Ti | 0.0005 | V | 0.0005 | — | — | |
Packaging of Tungsten Trioxide (WO3) Powder:
Our tungsten trioxide is clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
Description
Note: For pricing & ordering information, please get in touch with us at sales@nanochemazone.com
Please contact us for quotes on Larger Quantities and customization. E-mail: contact@nanochemazone.com
Customization:
If you are planning to order large quantities for your industrial and academic needs, please note that customization of parameters (such as size, length, purity, functionalities, etc.) is available upon request.
NOTE:
Images, pictures, colors, particle sizes, purity, packing, descriptions, and specifications for the real and actual goods may differ. These are only used on the website for the purposes of reference, advertising, and portrayal. Please contact us via email at sales@nanochemazone.com or by phone at (+1 780 612 4177) if you have any questions.
Only logged in customers who have purchased this product may leave a review.
