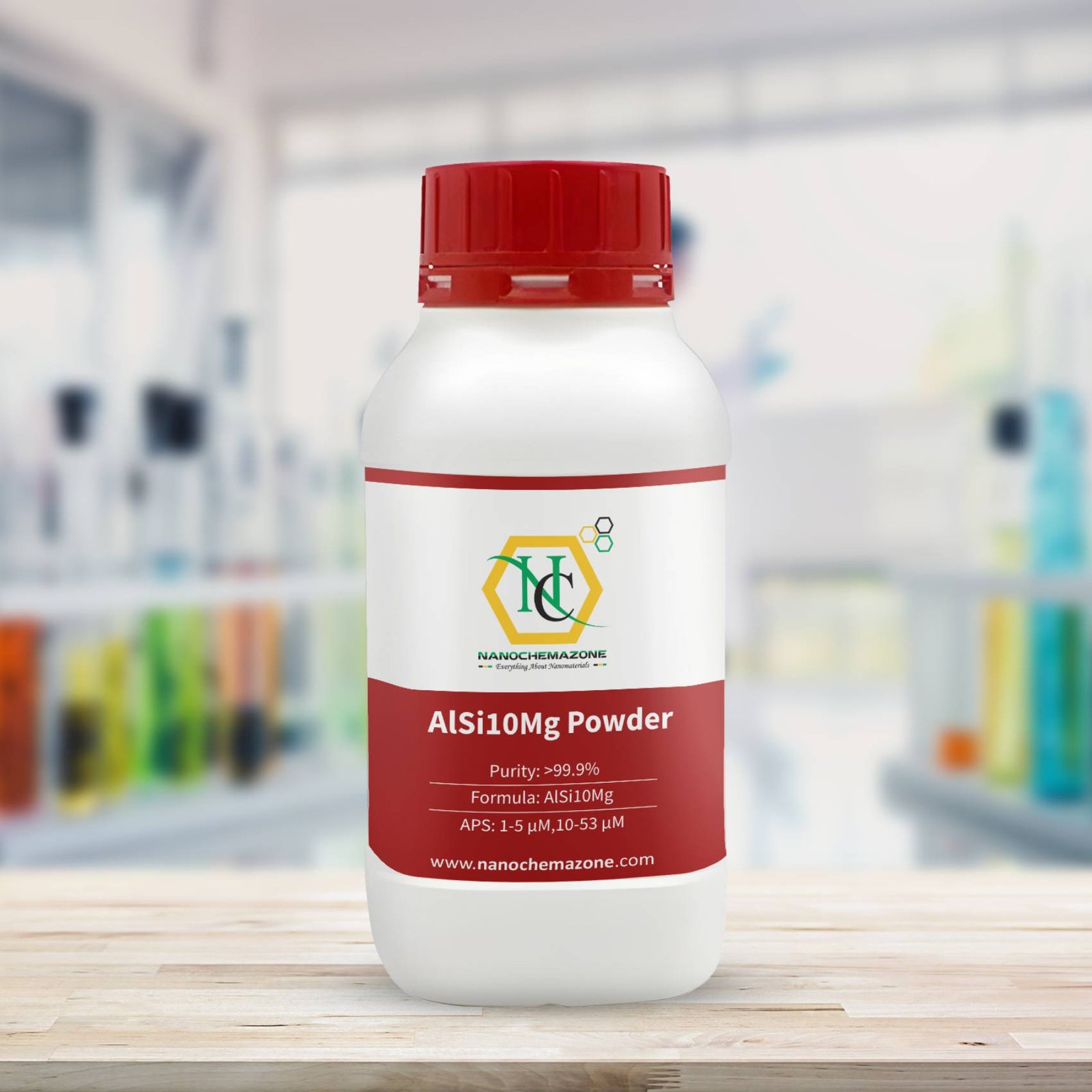

AlSi10Mg Powder

AlSi10Mg Description:

AlSi10Mg Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

ALSi10Mg Powder Related Information :

Storage Conditions:

Airtight sealed, avoid light and keep dry at room temperature.

Please contact us for customization and price inquiry

Email: contact@nanochemazone.com

Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters.

mize health and safety risks.

AlSi10Mg powder

AlSi10Mg powder is a composite material composed of aluminum (Al), silicon (Si), and magnesium (Mg). It is specifically designed for use in additive manufacturing processes, where it is used as a feedstock material for 3D printers.

Overview of AlSi10Mg Powder

AlSi10Mg is an aluminum alloy powder composed primarily of aluminum along with silicon and magnesium as the major alloying elements. It is widely used in metal additive manufacturing, also known as 3D printing, due to its excellent strength, durability, weldability, and corrosion resistance.

AlSi10Mg powder can be processed through selective laser melting (SLM), electron beam melting (EBM), and direct metal laser sintering (DMLS) to create complex metal parts with fine details and custom geometries. Its properties make it suitable for aerospace, automotive, medical, and industrial applications.

This article provides a comprehensive technical overview of AlSi10Mg powder covering its composition, properties, applications, pricing, suppliers, and other key information for materials engineers, product designers, and 3D printing professionals.

AlSi10Mg Powder Key Details:

Composition: Aluminum with 9-11% silicon, 0.2-0.45% magnesium

Particle shape: Spherical, high flowability

Size range: 15-45 microns

Density: 2.67 g/cc

Melting point: ~615°C

Strength: Medium to high

Uses: Aerospace, automotive, industrial 3D printing

Composition of AlSi10Mg Powder

The composition of AlSi10Mg powder consists mainly of aluminum with additions of silicon and magnesium as alloying elements. The nominal composition range is provided below:

Silicon is added to aluminum to improve castability and enhance mechanical properties like yield strength and hardness. It increases fluidity during melting and improves feeding characteristics.

The addition of magnesium results in precipitation hardening which strengthens the alloy through heat treatment. Magnesium also improves corrosion resistance.

Trace amounts of iron, manganese, and other elements may be present as impurities up to 0.55% maximum. The levels of alloying additions can be varied within range to tailor the properties as per application requirements.

Nominal composition range of AlSi10Mg alloy powder

Properties of AlSi10Mg Powder

AlSi10Mg exhibits properties making it suitable for demanding applications across aerospace, automotive, and industrial sectors. The key properties are highlighted below:

Mechanical Properties

High strength and hardness

Good ductility in annealed state

Excellent weldability

High fatigue strength

Physical Properties

Density: 2.67 g/cc

Melting point: ~615°C

Thermal conductivity: 130 W/m-K

Coefficient of thermal expansion: 21-24 x 10^-6 K^-1

Other

Good corrosion resistance

Excellent printability and surface finish

Biocompatible per ISO 10993 and ASTM F67

Non-magnetic

The density is comparable to aluminum alloys like AlSi12 and AlSi7Mg. The melting point is also similar to standard Al-Si casting alloys. These properties allow processing and consolidation via sintering and melting.

Overview of key properties of AlSi10Mg powder

Note: Properties depend on precise composition, manufacturing method, build orientation, heat treatment etc. Values shown are typical or standard.

The mechanical properties like high yield and tensile strength along with good ductility make AlSi10Mg suitable for high-performance parts across industries. The alloy can be age hardened to further enhance strength. Excellent corrosion resistance is achieved by silicon additions creating a protective oxide layer. Overall, AlSi10Mg provides a versatile combination of properties for metal AM.

Applications of AlSi10Mg Powder

The lightweight, strong, and printable characteristics of AlSi10Mg powder make it one of the most widely used alloys in additive manufacturing. Some typical applications include:

Aerospace: Turbine blades, rocket nozzles, structural brackets, satellite components, UAV parts

Automotive: Powertrain parts, pistons, turbochargers, heat exchangers

Industrial: Robotics, tooling, jigs and fixtures, driveshafts

Medical: Orthopedic implants, prosthetics, surgical instruments

Other: Heat sinks, hydraulic manifolds, housings, cooling channels

AlSi10Mg enables complex, optimized geometries that improve performance and efficiency in the above applications. The fine structures possible via 3D printing enhances heat transfer, fluid flow, and other properties.

The excellent strength-to-weight ratio of AlSi10Mg reduces component weight while maintaining mechanical performance. This helps improve fuel economy in vehicles and lower launch costs in space applications.

 Overview of AlSi10Mg applications across industries

AlSi10Mg is certified for aerospace applications meeting standards like AMS4967 and AMS4169. Extensive qualifications and testing validates its performance under extreme environments. The biocompatibility per ISO 10993 and ASTM F67 allows use in medical devices and implants. Overall, AlSi10Mg provides a versatile lightweight material solution for critical applications.

Processability of AlSi10Mg Powder

AlSi10Mg powder can be processed via major metal additive manufacturing methods like:

Selective Laser Melting (SLM)

Direct Metal Laser Sintering (DMLS)

Electron Beam Melting (EBM)

Laser-based Methods: SLM and DMLS use a high power laser to selectively fuse regions of a powder bed to build up parts layer-by-layer. The consolidated material has properties comparable to conventional aluminum alloys. SLM typically uses higher laser power for full melting. DMLS has lower power for sintering powder particles.

Electron Beam Melting: EBM uses an electron beam as heat source to melt and fuse material. It can achieve higher build rates than laser processes since it fuses each layer rapidly. Material properties are similar to SLM and DMLS.

Print Parameters: Typical SLM parameters – Laser power 175-350 W, Scan speed 700-1500 mm/s, Layer thickness 20-100 μm. For EBM – Beam power 3-7 kW, Scan speed 1000-2500 mm/s, Layer thickness 50-200 μm.

Other methods: AlSi10Mg powder can also be used in binder jetting where a liquid binder is selectively deposited to form the shape. The “green” part is then sintered. Cold spray deposition is also possible.

AM processes compatible with AlSi10Mg alloy powder

AlSi10Mg powder has high absorbance to the laser/electron beam, and excellent flow and packing density. This results in good spreadability across powder bed and efficient melting/sintering. The particle size and spherical morphology also plays a key role.

Overall, AlSi10Mg offers excellent processability across PBF and related methods to fabricate complex geometries with good surface finish and feature resolution.

Powder Characteristics and Quality

AlSi10Mg powder used in AM processes exhibits the following characteristics:

Spherical powder morphology with smooth surface

Flowability with minimal agglomeration

Apparent density ~1.2-1.6 g/cc

Tap density ~2.2-2.7 g/cc

Uniform composition distribution

High purity with low internal porosity

Controlled particle size distribution

Particle shape: Spherical powder morphology provides good flow and spreadability across the powder bed. It results in uniform melting and material properties. Gas atomization is commonly used to achieve sphericity >90%.

Flowability: Powders with high flowability spread evenly and pack densely on powder bed platforms. Flow rates of 23-27 s/50g through Hall funnel are typical.

Particle size: The particle size distribution is generally 10-45 μm or 15-45 μm. Larger particles ~35-45 μm improve flow while smaller ones ~15-25 μm enhance density and resolution.

Composition control: Tight control of composition within specification maximizes material performance. Uniform distribution of alloying elements is ensured.

Purity: High purity with low porosity and inclusions prevents process defects. Oxygen content <1000 ppm.

Typical characteristics and properties of AlSi10Mg powders

Parameters like particle shape distribution (PSD) and Hausner ratio indicate powder quality. Strict control over gas atomization results in high batch-to-batch consistency. Powder is supplied with composition report and lot-specific certificates of analysis (COA).

Choosing AlSi10Mg Powder

Key considerations for choosing AlSi10Mg powder include:

Application requirements: Performance needs like strength, hardness, ductility, fatigue life, etc. Applications may demand specific material certifications also.

AM process variables: Matching particle size range, shape and distribution to the printer model, layer thickness, beam power and related parameters.

Quality and consistency: Powder batches that reliably meet composition, purity, particle characteristics etc. are critical for production use.

Availability and lead times: For prototype work availability of small quantities may be key while production needs bulk orders and stable long-term supply.

Pricing: Price per kg will depend on quantity, shipment costs, supplier margins etc. Large OEM contracts get better pricing.

Technical support: Manufacturers with strong technical expertise in metal powder production and AM can provide guidance on best powder options.

Working with established suppliers and collaborating early in the AM part design process is advised when selecting AlSi10Mg powder.

Pros and Cons of AlSi10Mg Powder

Pros

High strength with good ductility

Excellent corrosion resistance

Readily weldable and machinable

Good thermal properties

Widely qualified for aerospace use

Biocompatible for medical implants

Cons

Lower yield strength than AlSi7Mg and AlSi12 alloys

Susceptible to porosity defects during printing

High reflectivity demands higher laser power

Not optimal for high temperature applications >150°C

More expensive than unalloyed aluminum powders

FAQs

1. What is the chemical composition of AlSi10Mg powder?
2. The typical composition is aluminum base with 9-11% silicon and 0.2-0.45% magnesium. Remaining is other trace elements at <0.55% total.
3. What is the density of AlSi10Mg and AlSi10Mg powder?
4. The density is around 2.67 g/cc for both the bulk alloy and the powder form.
5. What are the mechanical properties of AlSi10Mg parts made by AM?
6. Printed AlSi10Mg has a tensile strength of 330-430 MPa, yield strength of 215-365 MPa, and elongation of 8-10% in the as-built condition. Heat treatment can further improve properties.
7. What particle size is recommended for AlSi10Mg powder in AM?
8. A particle size range of 15-45 microns is commonly used, though size distributions can be optimized for specific printers and layer thickness requirements.
9. Can you machine/weld AlSi10Mg AM parts?
10. Yes, AlSi10Mg parts made by 3D printing can be machined and welded via conventional methods after an appropriate stress relief heat treatment.
11. Is AlSi10Mg powder reusable?
12. AlSi10Mg powder can typically be recycled 5-10 times before a refresh is needed, depending on AM process and contamination levels.
